Name: CPUMMK2 600-050-000-001 620-021-110-113 CPU Board
Brand: Joyoung International Trading Co.,Ltd
SKU: CPUMMK2 600-050-000-001 620-021-110-113
Price: 1000 USD
Availability: InStock

Ana sayfa Ürünler Diğer markalar

CPUMMK2 600-050-000-001 620-021-110-113 CPU Board

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Other Brands
Sertifika:	CO
Model numarası:	CPUMMK2 600-050-000-001 620-021-110-113
Belge:	CPUMMK2.pdf

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1EA
Fiyat:	$1000
Ambalaj bilgileri:	Orijinal
Teslim süresi:	3-5 iş günü
Ödeme koşulları:	T/T
Yetenek temini:	Günde 10 parça

İletişim

Detaylı ürün tanımı

Marka adı:	Other Brands	Ürün Modeli:	CPUMMk2 600-050-000-001
Parça numarası:	620-021-110-113	Ambalaj:	Orijinal
Garanti:	1 Yıl	Kurşun zamanı:	Stokta var
Vurgulamak:	CPUMMK2 CPU board replacement , 620-021-110-113 CPU board , 600-050-000-001 CPU board

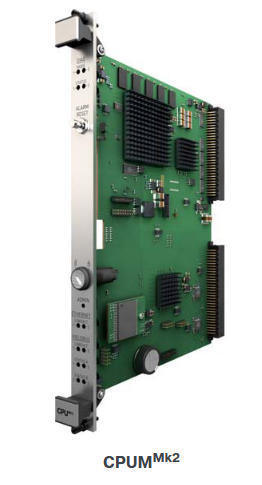

CPUMMK2 600-050-000-001 620-021-110-113 CPU Board

Product Specifications

Brand Name	Others
Model	CPUMMK2 600-050-000-001
Ordering Information	620-021-110-113
Origin	China
Dimension	161612 cm
Weight	1 kg
HS Code	8537101190
Payment	T/T
Sales Price	$1000
Warranty	12 months
Lead Time	3-5 work days

Product Overview

The CPUM Mk2 CPU Board must be paired with the IOCN Mk2, serving as an optional rack controller and communication interface for industrial monitoring systems.

Key Features

Modbus TCP/PROFIBUS DP fieldbus communication
Data collection, processing, and sharing capabilities
Communication redundancy support
Front-panel alarm reset (AR) functionality
Rack security with removable-key lock
Event logging capabilities
Compatible with distributed systems and machinery monitoring software

Installation & Configuration

The CPUM Mk2 and IOCN Mk2 are single-width modules that each occupy one slot in the ABE04x system rack. For standard operation, install the CPUM Mk2 at the rack front with the IOCN Mk2 directly behind it at the rear. Both modules connect to the rack backplane via two connectors.

For rack-level communication redundancy, install two pairs: one as the "master" in slots 0 and the other as the "subordinate" in slots 1. This pair configuration works with all ABE04x racks and later models with an I²C interface.

System Integration

The CPUM Mk2 acquires measurement data by connecting to other processing modules (such as MPC4 Mk2 and future AMCx Mk2) via the VME bus and XMx16 modules via Ethernet. It shares this data with third-party systems including DCS or PLC, and supports basic processing operations including arithmetic and logical functions.

Note: The CPUM Mk2 is incompatible with first-generation cards and functions as a low-bandwidth data gateway for XMx16 modules. As a rack controller, it can configure XMx16 + XIO16T modules without requiring a server.

Compatible Components

IC670ALG630	07AI91
07KT97	140XTS00200
AAM21-S2	ADV551-P00
DO232	CON 041
PR6423/002-030	1746-OV16
CP60 P0961FR	ASSY-0301059
