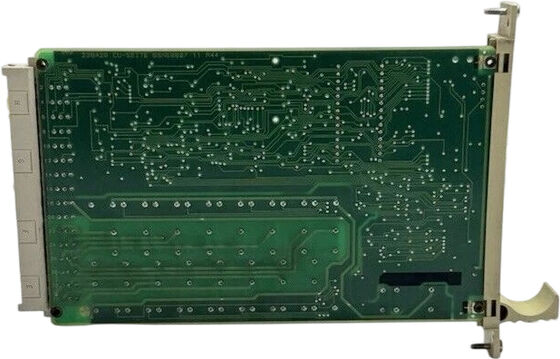

Name: 23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC
Brand: Joyoung International Trading Co.,Ltd
SKU: 23BA20
Price: 1500 USD
Availability: InStock

Ana sayfa Ürünler body{background-color:#FFFFFF} TestPage184 window.onload = function () { do

23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC

Ürün ayrıntıları:

Menşe yeri:	İsveç
Marka adı:	ABB
Sertifika:	COC
Model numarası:	23BA20

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	1500
Ambalaj bilgileri:	Orijinal
Teslim süresi:	5-8 İŞ GÜNÜ
Ödeme koşulları:	T/T
Yetenek temini:	Günde 10 parça

İletişim

Detaylı ürün tanımı

İsim:	23BA20 GSNE000700R5312	Modeli:	23BA20
Paket:	Standart	Garanti:	12 ay
Brüt ağırlık:	2,2 lbs / 35.2 oz / 1kg	ambalaj boyutu:	7 "x 7" x 4 "(18 cm x 18 cm x 10 cm)
Kurşun zamanı:	1~3 Gün	Kalite:	%100 marka
Stoklamak:	Mevcut
Vurgulamak:	ABB binary output board 16 channel , ABB module 24-60 VDC , binary output board with warranty

23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC

Product Specifications

Brand Name	ABB
Model	23BA20
Product ID	GSNE000700R5312
Catalog	Procontrol
Origin	SWEDEN
Dimension	161612cm
Weight	0.5kg
HS Code	8537101190
Payment	T/T
Sales Price	$1500
Warranty	12 months
Lead time	3-5 work days

Product Description

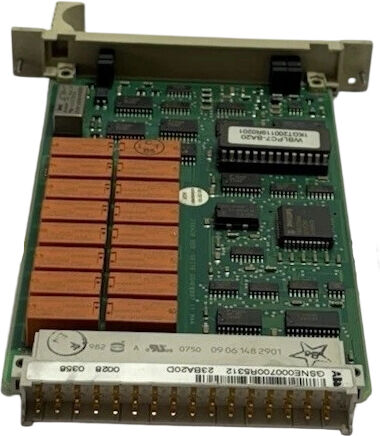

The 23BA20 board features sixteen output relays, organized into two independent groups of eight. Each group shares a common return contact, allowing the output channels to be powered by just two separate process voltage sources. This grouped design simplifies wiring and provides flexible integration into various control system architectures.

Output operation is managed by an integrated I/O microcontroller, the Input-Output Processor (EAP). The EAP activates specific outputs based on command requests received from the Communication Unit's (CMU) central processing module (VAP). It precisely controls the timing of pulse outputs by executing commands based on pre-loaded pulse length values, ensuring accurate and timed control signals.

The board incorporates comprehensive diagnostic and supervision functions for maximum reliability. The EAP performs a read-back of the output pattern before activation to verify commands. During an active output, it continuously monitors the 24V DC supply from the backplane bus that powers the relays. Furthermore, the EAP supervises the actual pulse duration, and any detected error is immediately indicated via onboard LED status indicators.

Additional Information

N/M	N/M
YXU168E	YT204001-JB/1
SDCS-IOE-2C	64018019
DATX 133	3ASC25H219
