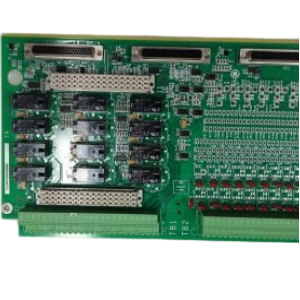

Name: GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage
Brand: Joyoung International Trading Co.,Ltd
SKU: IS200TDBTH6A
Price: 4000 USD
Availability: InStock

Ana sayfa Ürünler GE Fanuc PLC

GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage

Ürün ayrıntıları:

Menşe yeri:	Amerika
Marka adı:	GE
Sertifika:	CO
Model numarası:	IS200TDBTH6A

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 adet
Fiyat:	$4000
Ambalaj bilgileri:	6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm)
Teslim süresi:	5-8 iş günü
Ödeme koşulları:	T/T
Yetenek temini:	10 adet

İletişim

Detaylı ürün tanımı

Marka adı:	GE	Modeli:	IS200TDBTH6A
Durum:	Yeni	Brüt Ağırlık/Nakliye Ağırlığı:	2,2 lbs / 35.2 oz / 1kg
Paketleme boyutu:	6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm)	Doğum Ülkesi/Origin Ülkesi:	ABD (ABD)
Kurşun zamanı:	Stokta var	Nakliye limanı:	Xiamen
Ödeme:	T/T	Satış fiyatı:	SORGU
Renk:	Malzemeye bağlıdır	Garanti:	12 ay
Kurşun zamanı:	5-8 iş günü	kurye ortakları:	DHL, UPS, TNT, FedEx ve EMS
Vurgulamak:	24 Channels Terminal Board , 16-145 V DC Wetting Voltage Terminal Board , Mark VI I/O Terminal Board

IS200TDBTH6A GE Mark VI Discrete Input/Output Terminal Board - 24 Channels

Product Specifications

Brand Name	GE
Model	IS200TDBTH6A
Catalog	Mark VI
Origin	United States (USA)
Dimension	16×16×12cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$4000
Warranty	12 months
Lead time	3-5 work days

Additional Information

GEI-100165	GEDS Standard Message Format (GSM)
GFK-1396	CIMPLICITY HMI CimEdit Operation Manual
GEH-6408	Control System Toolbox for Configuring the Trend Recorder

Product Description

The GE IS200TDBTH6A is a Discrete Input/Output Terminal Board manufactured by General Electric as part of the Mark VIe Series for Distributed Control Systems. This flat or DIN-rail mounted TMR contact input/output terminal board features:

24 group-isolated contact inputs with external wetting voltage support (24V, 48V, or 125V DC)
Built-in noise suppression for protection against surges and high-frequency noise
12 form-C relay outputs for enhanced relay functionality
Option card compatibility for expanded capabilities
Onboard signal conditioning identical to STCI, scaled for 24V, 48V, and 125V DC wetting voltage
Input voltage ranges: 16-32V DC, 32-64V DC, and 100-145V DC respectively
Current-limited contact inputs (2.5mA for circuits 1-21, 10mA for circuits 22-24)
0.5A current limitation on 24V DC supply using resettable polymer PTC fuses

The wetting voltage is set at half of the threshold voltage for optimal performance. The I/O pack includes detailed touch-sensing circuitry diagrams for precise configuration.
